UN4G Packaging – 2.5 Gallon

Posted in combination packaging, plastic bottles, plastic jugs

The UN4G designation is broken down as follows:

  • UN = United Nations
  • 4 = Box
  • G = Fiberboard

We stock two items that are UN4G packaging.  One item is a 10 litre Kube, with a UN rating of UN4GW/Y15.8/S.  Our Kube is assembled and comes with a dust cap (to keep the container clean). Included also is a 38mm cap.  It is a cardboard box with a low density molded polyethylene insert.  The insert is designed to be self collapsing.  This type of container is popular with our local regional water authority for use as potable water containers in emergency situations.  We also sell an optional 38mm Quick Serve Spigot (listed below).

10 Litre Kube

The other item is a 2.5 gallon F style HDPE plastic jug packed in a 2/pack reshipper box.  This container has a UN rating of UN4G/Y32/S.  Please note that pricing is per jug (not per 2/pack).  This jug has gallon and litre graduation marks.  Caps are sold separately and there are two cap choices (listed below).  Our cap RKCFS632502F217 is a white plastic 63mm cap with an F217 lining.  The second cap is RKCSC-63R-143 and is our 63mm cap with a 3/4″ center reducer.  This would be the cap to select if you wish to use our 3/4″ Flo Rite Faucet (sold separately).  The center reducer can be “punched out” and the 3/4″ faucet threaded into the cap.

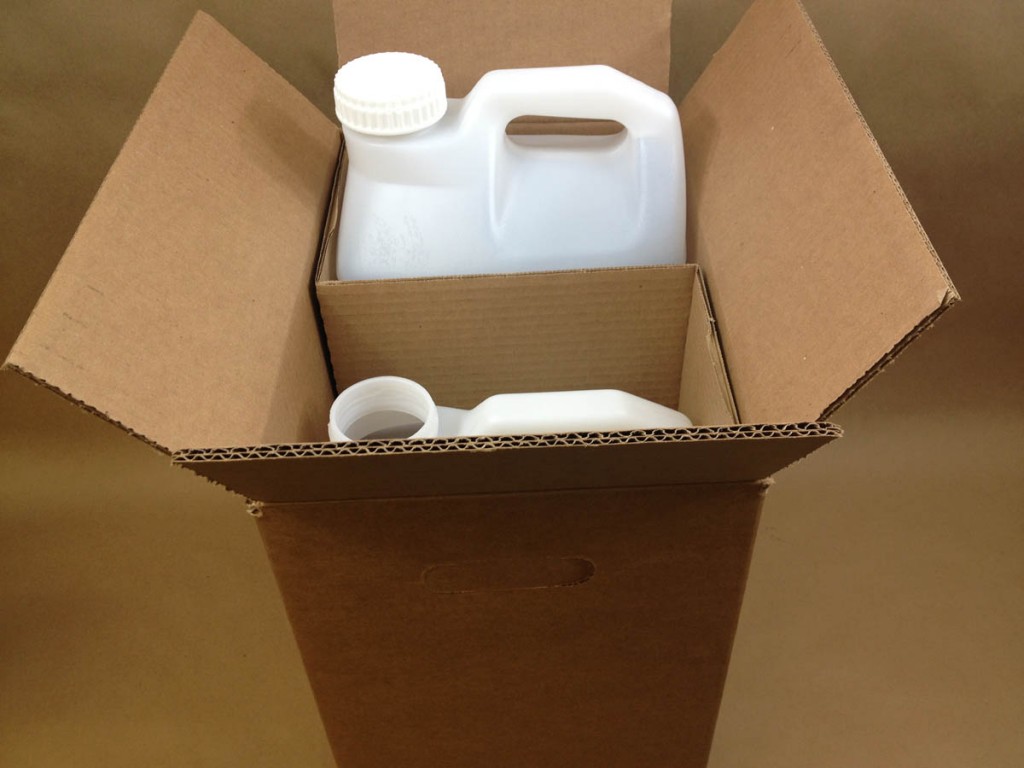

2.5 Gallon Jug in 2/Pack Reshipper

10 Litre Kube

38mm Quick Serve Spigot

38mm White Plastic Round Spigot
Item: FAU0380KO10001
UN Rating:
Opening: 38 400
Pack: 1100
each price
List $
@ $



Ask a Question View




2.5 Gallon F Style Plastic Jug in 2/Pack Reshipper

63mm Cap Choices

63 485 F217 Foam White Plastic Round
Item: PCA0630RI10001
UN Rating:
Opening: 63 485
Pack: 1000
Foam liners are used extensively for foods, beverages, pharmaceuticals, cosmetics, industrial and household chemicals. They have good resistance to acids, alkalies, slow solvents, alcohols, oils and aqueous products. They have poor resistance to active hydrocarbon solvents. These liners comply with FDA regulation 177.1520(c)3.1 for food contact application.
each price
List $
@ $



Ask a Question View

63mm x 3/4 Natural Plastic Round HDPE with EPDM Gasket
Item: PCA0630RI00001
UN Rating:
Opening: 63mm x 34
Pack: 500
This 63mm cap has a 3/4" center reducer that can be taken out allowing a 3/4" threaded faucet (sold separately) to be attached.
each price
List $
@ $



Ask a Question View

Optional 3/4″ Faucet

Natural Plastic Flo Rite Faucet
Item: FAU0001RI00001
UN Rating:
Opening: 3/4"
Pack: 500
each price
List $
@ $



Ask a Question View







This has been an article on containers by UN rating
